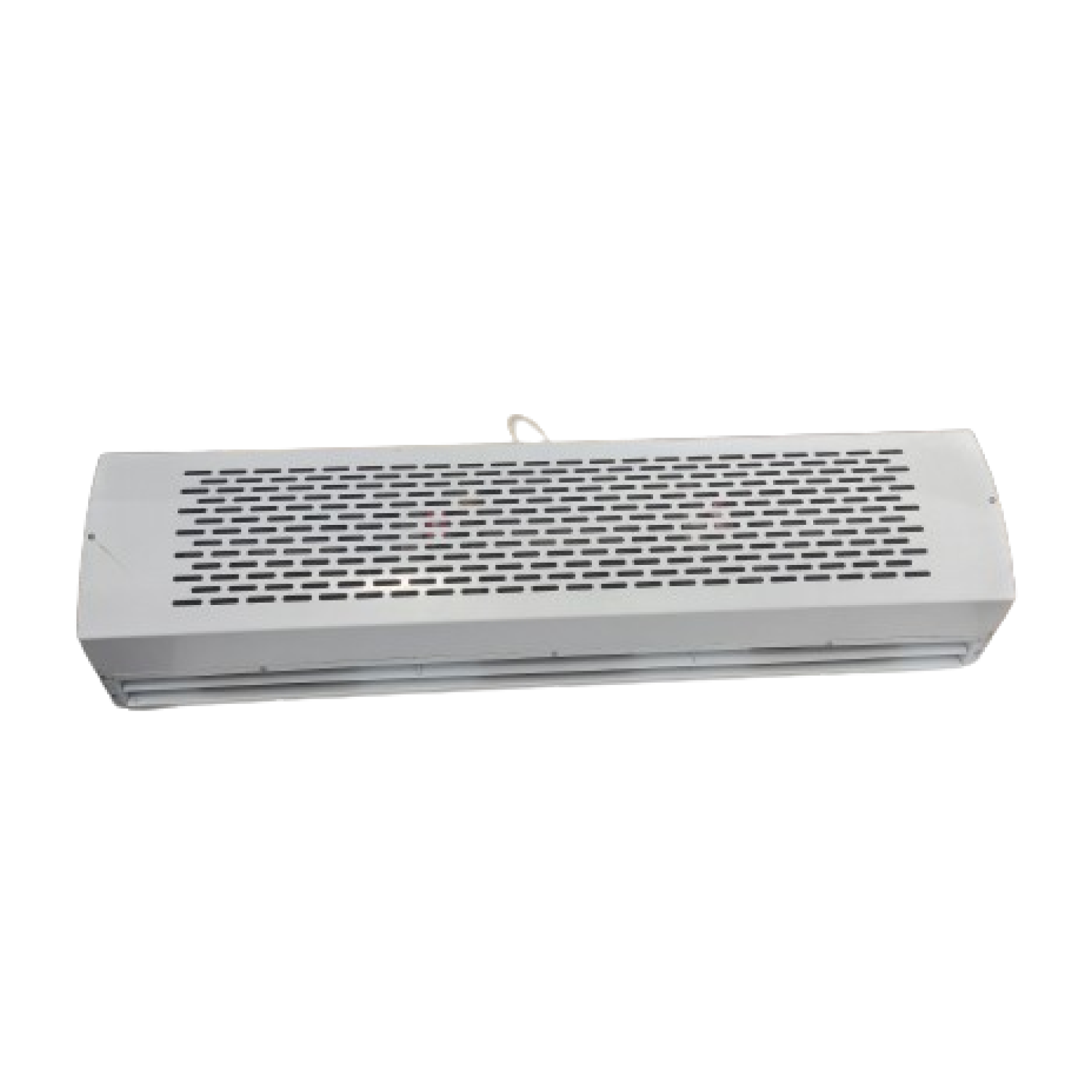

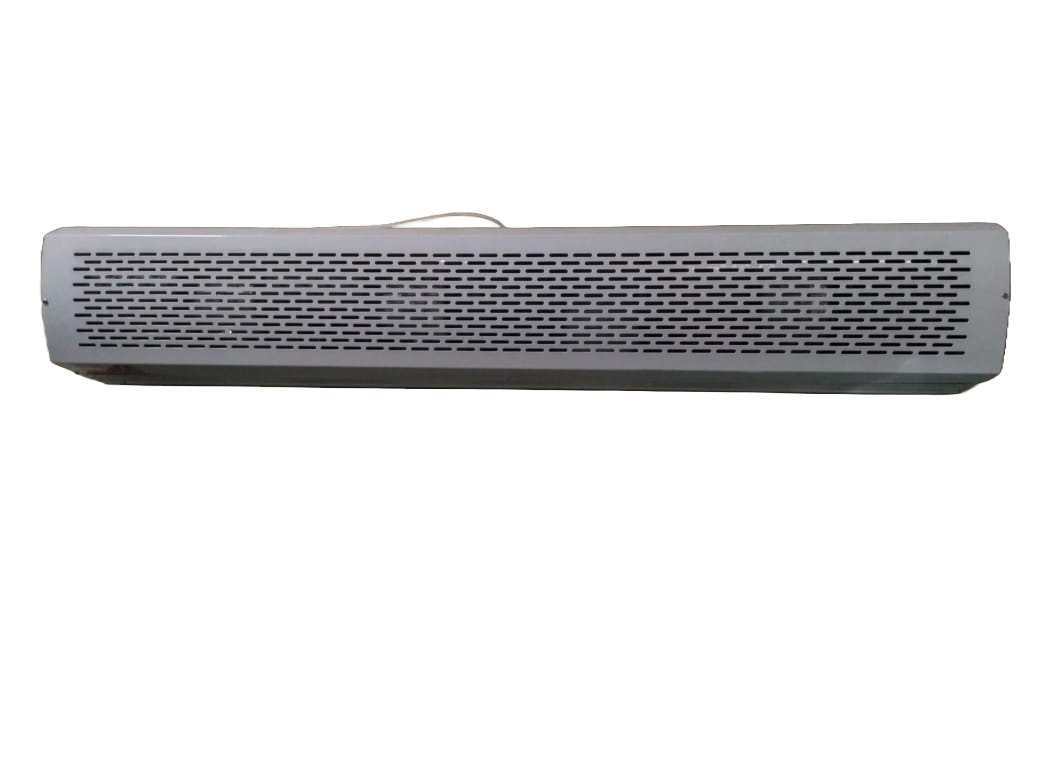

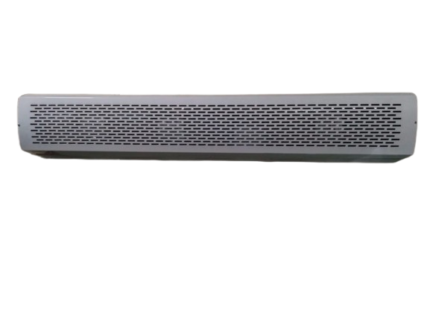

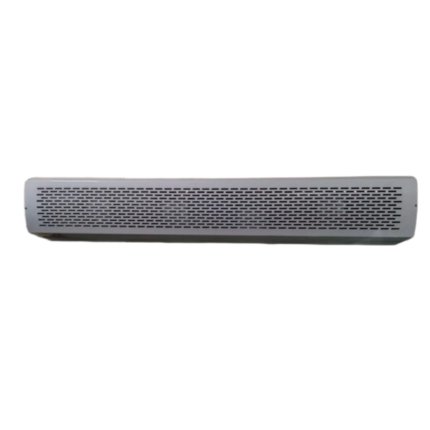

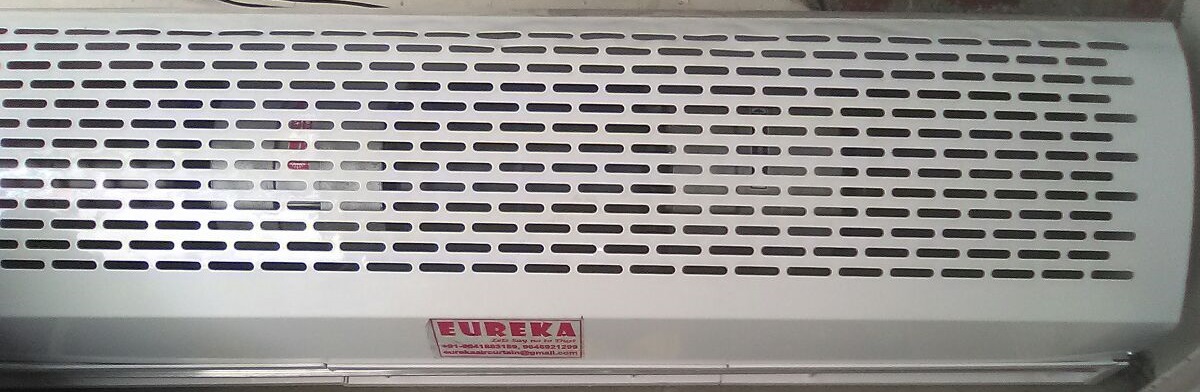

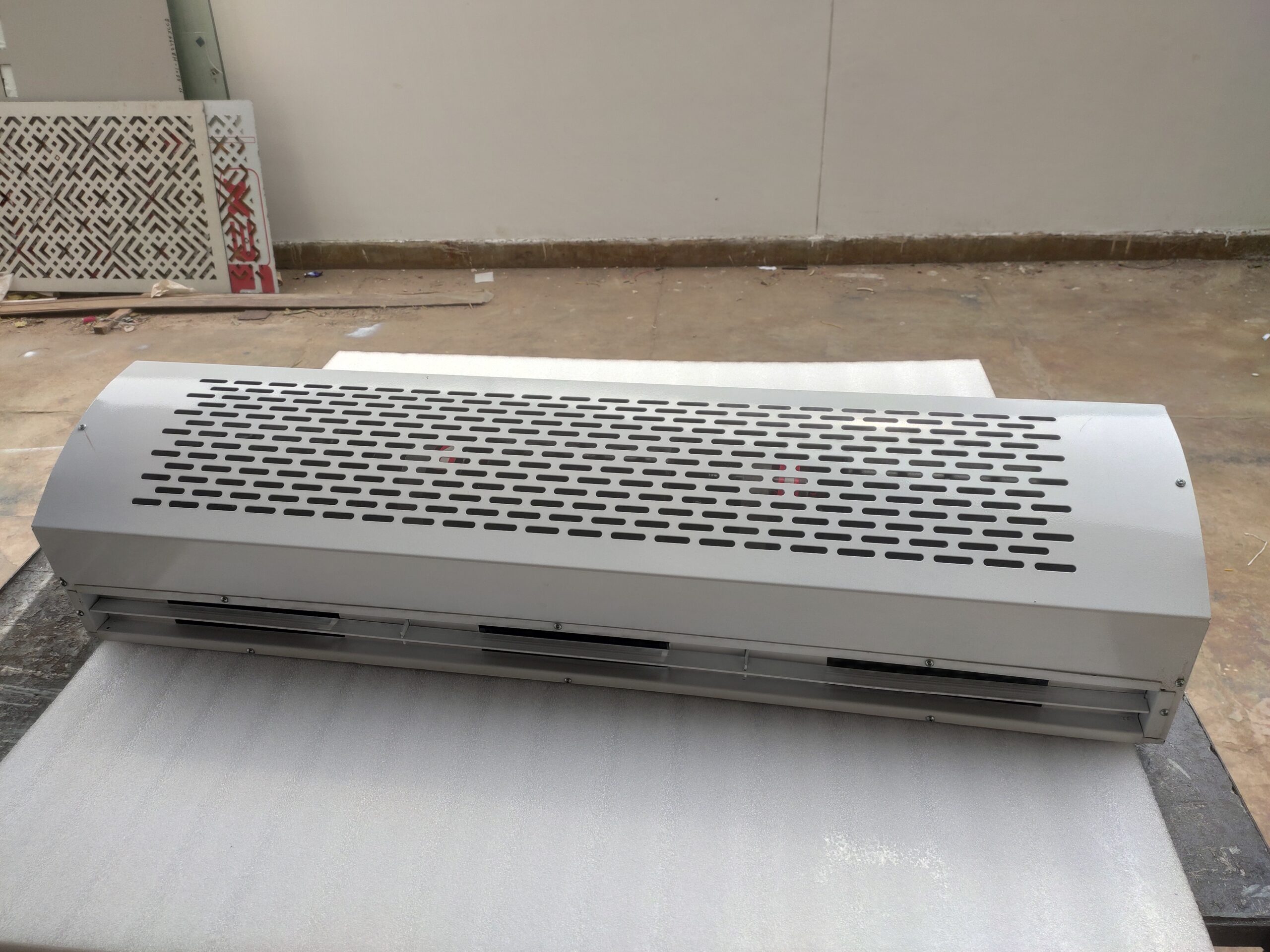

Eureka Sleek Air Curtain [3.5 Feet] with Single Door Magnetic Sensor with Door Delivery ( Shipping paid by us)
We offer high quality Horizontal EUREKA Air Curtains that are air barriers precisely designed to meet the concept of energy conservation. Our Clean Room Curtains isolate outer hot and dusty air and maintain cool and clean atmosphere in restaurants, production hall, computer room etc. Simple in operation and low power consumption, our Air Curtains are installed on the outer or inner side of door opening leading to clean or air conditioned room. It is highly effective in controlling air-conditioning cost. We are counted among the major Air Curtains Manufacturers and exporters in India.
We can make Air curtain as per your size requirement.
Applications
-
- Electronic Industry
- Pharmaceutical Industry
- Thermal Power Plant
- Food processing unit
- Soft-drink manufacturing plant
- Air-Conditioned Restaurant and hotel
- R & D Centers
- Hospital & Nursing Homes
- Control Rooms
- Electronic Exchange
- Cold Storage
- Bakeries & Breweries
- Air-Conditioned Complexes and Shopping Centers
- Tissue-Culture Lab

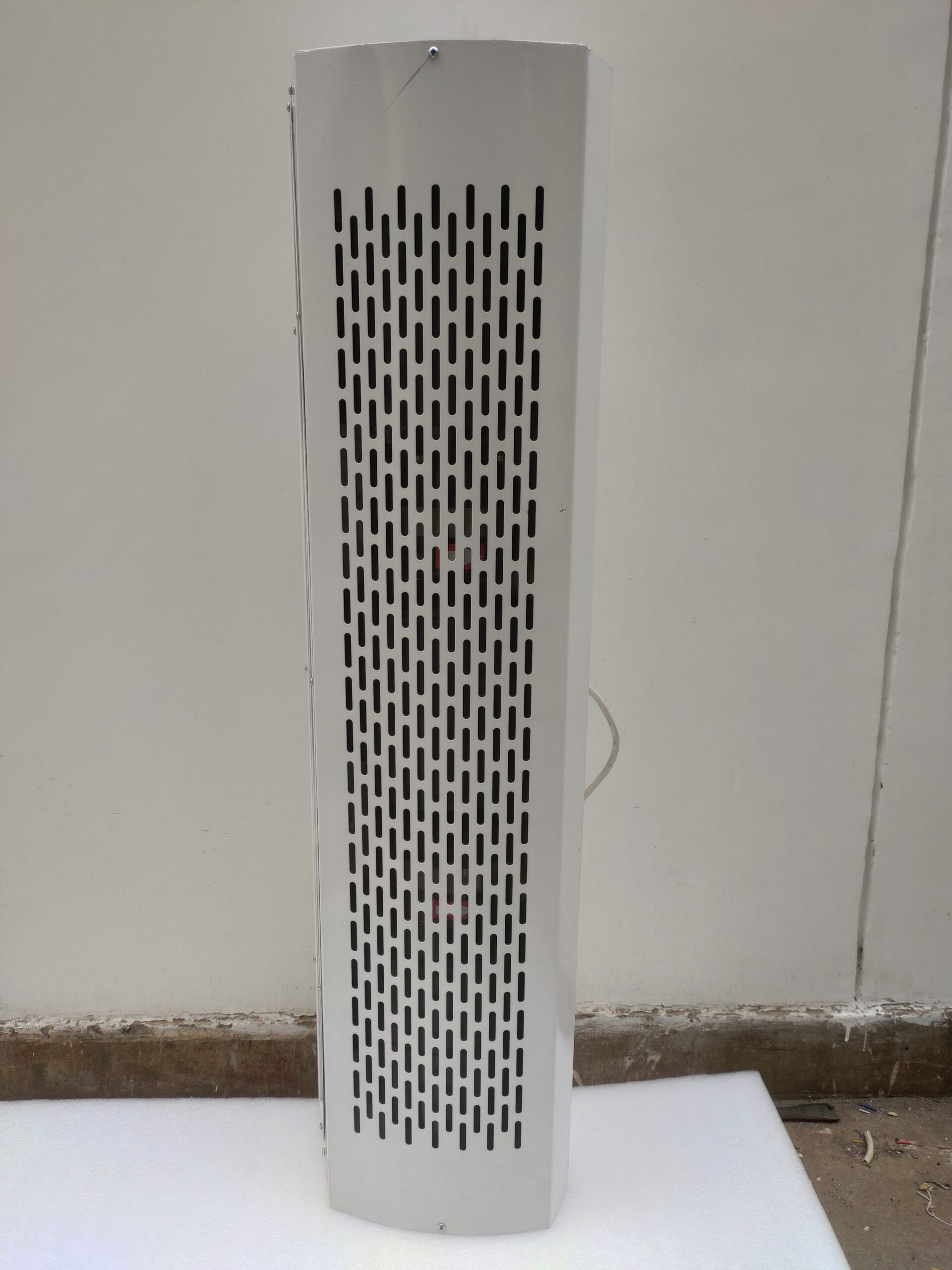

We are engaged in supplying a variety of Air Curtains that are used to avoid the outside air to enter in cooled or heated area through an opening. Our product range includes Powder Coated Air Curtains, Aluminum, Stainless Steel, Vertical, Filter Air Curtains, Human/ Magnetic Sensor and Custom Air Curtains.
They comprise of a protective shield, for rejection of unwanted air, dust, smell and noxious odor, temperature loss, smoke and insects. These air curtains are used in several applications, including restaurants, hospitals, Auditoriums, Offices, Banks, Hotels, Air-Conditioned showrooms, Airports and many more places.
The Air Curtains are sleek, quiet, with a consumer-friendly design that makes it perfect for commercial installations and also has a variable speed control, allowing you to turn the air column up or down to suit your needs. In summers they keep the hot air out and keep the premises cold and in the winters they keep the buildings warm and keep the cold air outside.
Food Industry like restaurants and hotels where hygiene is of utmost priority can benefit the most from these Air Curtains to keep the hygiene levels up all the time and keep all unwanted smells, insects and dust away from the cooking area.
TECHINICAL SPECIFICATION COMMERCIAL AIRCURTAINS
| SIZES | 3 FEET (900 MM) | 3.5 FEET (1000 MM) | 4 FEET (1200 MM) | 5 FEET (1500 MM) | 6 FEET (1800 MM) | 7 FEET (2100 MM) |
|---|---|---|---|---|---|---|
| DIMENSIONS IN MM | 900 (W) X 230 (H) X 220 (D) | 1000 (W) X 230 (H) X 220 (D) | 1200 (W) X 230 (H) X 220 (D) | 1500 (W) X 230 (H) X 220 (D) | 1800 (W) X 230 (H) X 220 (D) | 2100 (W) X 230 (H) X 220 (D) |
| AIRVELOCITY AT NOZZLE | 20-21 M/S | 20-21 M/S | 20-21 M/S | 20-21 M/S | 20-21 M/S | 20-21 M/S |
| NO. OF BLOWERS | 3 BLOWERS | 3 BLOWERS | 4 BLOWERS | 5 BLOWERS | 6 BLOWERS | 7 BLOWERS |
| MOC OF BLOWERS | ABS PLASTIC | ABS PLASTIC | ABS PLASTIC | ABS PLASTIC | ABS PLASTIC | ABS PLASTIC |
| SIZE OF BLOWERS | 5X 5 INCHES | 5X 5 INCHES | 5X 5 INCHES | 5X 5 INCHES | 5X 5 INCHES | 5X 5 INCHES |
| NO. OF MOTORS | TWO | TWO | TWO | THREE | THREE | THREE |
| PHASE | SINGLE PHASE | SINGLE PHASE | SINGLE PHASE | SINGLE PHASE | SINGLE PHASE | SINGLE PHASE |
| MOTOR RPM | 2800 RPM | 2800 RPM | 2800 RPM | 2800 RPM | 2800 RPM | 2800 RPM |
| BODY MATERIAL | MS BODY WITH Powder Coated / SS BODY 304 GRADE | MS BODY WITH Powder Coated / SS BODY 304 GRADE | MS BODY WITH Powder Coated / SS BODY 304 GRADE | MS BODY WITH Powder Coated / SS BODY 304 GRADE | MS BODY WITH Powder Coated / SS BODY 304 GRADE | MS BODY WITH Powder Coated / SS BODY 304 GRADE |
